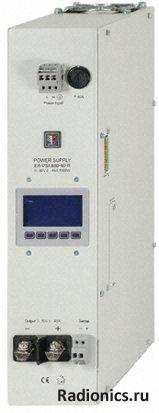

Источник питания Elektro-Automatik, EA-PSI 8500-30R
EA-PSI 800R 5kW Series
These “black box” heavy-duty power supplies for high-end industrial use provide for laboratory-quality DC output and feature 0 → 100% adjust and readback of voltage and current. High stability, low ripple and a multiple choice of digital interfaces make them suited to demanding and sensitive automated applications with heavy-duty loads. Manual output setting is via a graphic display with menu buttons and external control is via 0 → 10V analogue interface (or by a choice of digital interfaces available separately). The fully flexible ”autoranging” output allows usage either at high voltage or at high current within the nominal power rating. Typical applications are electronic components, -device or circuit testing, cycle and aging tests, electro-chemical processing, all controlled either by AD/DA converter card, PLC or computer interfaces such as RS232, USB, CAN, Ethernet or Profibus (freeware available for sequence testing).
μ-processor controlled and programmable
Heavy-duty for demanding industrial use, automated test benches, burn-in, cycle testing
Flexible auto-ranging outputs of up to 0 → 500V DC, up to 0 → 170A at 5kW
Analogue interface 0-10V, master-slave parallel operation for up to 50kW
Remote sensing, OTP, OVP, CC, CV, CP
Plug’n play digital interface slot (RS232, USB, CAN, Ethernet, Profibus)
Graphic display with menu buttons
Freeware “easypower lite“ for automated testing & data logging (csv)
Input voltage 2-ph. 340-460 V∼ @ 50 / 60 Hz with active PFC
Rugged wall/rack-mount housing 180x570x173mm, weight 14kg
Integral fan
Note
Can be controlled by AD/DA converter card, PLC or computer plug'n play interfaces such as RS232 686-1028, USB 686-1038, CAN 686-1031, Ethernet 686-1040 or Profibus.
Supplied with
Manual (English/German) |
