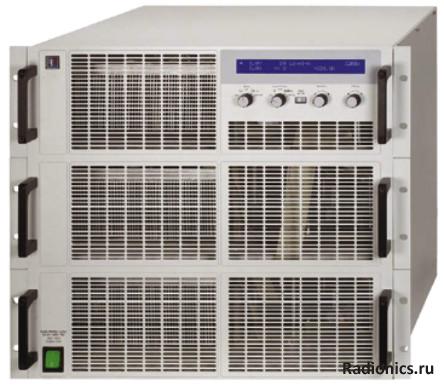

Программируемая электронная нагрузка Elektro-Automatik, EA-EL 9750-75HP

Программируемая электронная нагрузка Elektro-Automatik, EA-EL 9750-75HP
EA-EL 9000 HP Series
The electronic loads in the EL 9000 HP series offer an upgrade of the EL 9000 series by incorporating a high performance cooler and blower. At maximum input power, thermal derating of the load commences at an ambient temperature of 40°C. At such a temperature the performance of the EL 9000 HP series is approximately 118% higher than that of the EL 9000 series.
Temperature controlled power derating
Overtemperature protection (OT)
Pulse operation with adjustable pulse width 50μs-100s
Rise and fall time adjustable (slew rate)
All operation modes adjustable
Constant current (CC)
Constant voltage (CV)
Constant power (CP)
Constant resistance (CR)
Remote sense, trigger input, trigger output
Battery test mode with time and capacity counter
CE marked compliance to EMC, low voltage directives
Note
The "System Bus“ at the rear of the EA EL 9000 series has functions such as remote sense input, the Share bus input to create a two quadrant mode with laboratory power supplies of the EA-PS 9000 and EA-PSI 9000 series, and the switching of the control speed.

Информация

Код товара SKU21261

Производитель Elektro-Automatik

Артикул производителя EA-EL 9750-75HP

Условия поставки Под заказ

Цена : Цену уточняйте: radioniсs@mail.ru
