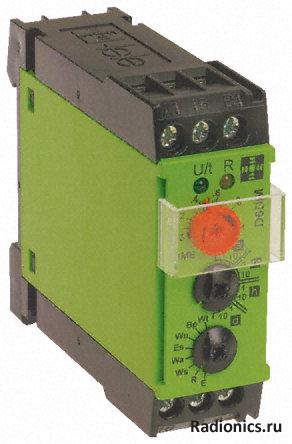

Таймер TELE, 234000
Contact Configuration NO/NC
Current Maximum 8 A
Depth 75mm
Length 64mm
Maximum Operating Temperature +55°C
Maximum Voltage 250 V ac
Minimum Operating Temperature -25°C
Mode of Operation Flash Pause First, OFF Delay with Control Contact, ON Delay, ON Delay with Control Contact, One Shot Leading Edge Voltage Controlled, One Shot Leading Edge with Control Contact, One Shot Trailing Edge with Control Contact, Pulse Detection
Mounting Type DIN Rail
Number of Contacts 1
Number of Timer Functions Multi Function
Power Supply External
Supply Voltage 110 → 240 V ac, 24 V ac/dc
Switch Configuration SPDT
Terminal Type Screw
Time Delay 100 (Reset) ms
Time Increment Days, Hours, Milliseconds, Minutes, Seconds
Time Range 50 ms → 10 days
Width 22.5mm |
