Штатив Noga NF 1300MN

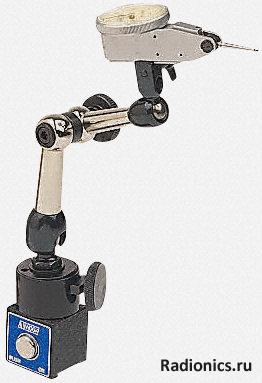

Centre Lock Noga Magnetic Base Sets
Available in two versions:
Permanent magnet base
Switchable magnet base
Both versions are identical with the exception of the magnetic bases. Both sets include a dovetail mounted metric lever indicator.
(L.140, W.35, H.125mm).
Pillar and Arm Chrome plated steel. Incorporates spherical knuckle joints top and bottom, with centre locking screw assembly. Fully articulated positioning possible
Fine adjustment located adjacent to the magnetic base.
Mechanism rotates through 360° to allow
alignment with the plane of arm and
indicator
Clamp Will accept dovetail lever gauge or 8mm/3/8 in. stem dial indicators
Lever indicator
Dovetail mounting
Reading 0-40-0 Graduation 0.01mm
Range 0 → 0.8mm Pointer length 26.3mm
|
