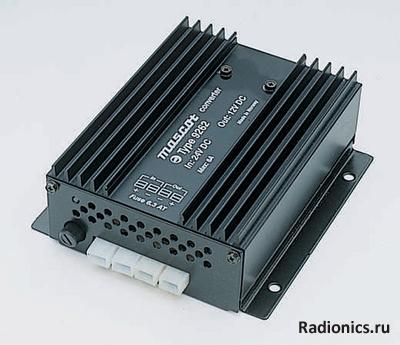

Преобразователь напряжения MASCOT, 9262

Преобразователь напряжения MASCOT, 9262

Преобразователь напряжения MASCOT, 9262
Преобразователь напряжения MASCOT, 9262
Regulated switching converter with good transient resistance for use in transient-rich electrical environments, such as forklift trucks e.g. In-/output electrically isolated from each other and from chassis. The converter's input can handle transients of up to 150 V direct voltage and the output is short circuit-proof. The output voltage can be internally adjusted by approximately 10%.
Input voltage: 21–32 Vdc
Transient resistance
input: 150 Vdc max.
Output voltage: 13.2 Vdc
(internally adjustable 11.5–14.5 V)
Output current: 6 A continuous
8 A intermittent
Ripple: 10 mVrms at 6 A
Regulation: Line 5 %, load 5 %
Idle running current: 50 mA
Switch frequency: C. 50 Hz
Temperature range: −20 to +30 °C
Contact type: Blade, 6.3 mm
Dimensions (W×H×D): 119×46×135 mm
Weight: 600 g
Информация
Код товара 19670
Производитель Mascot (Norway)
Артикул производителя 9262
