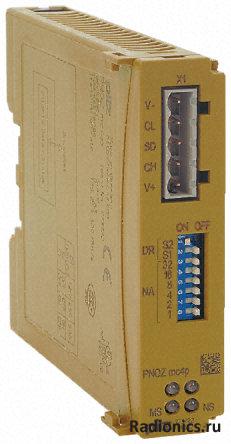

Модуль PILZ, PNOZ MC4P

Модуль PILZ, PNOZ MC4P

Модуль PILZ, PNOZ MC4P
Series PNOZ Multi
Fieldbus Module Yes
Expansion Module No
Dimensions 22.5x94x122mm
Supply Voltage 24V
Device-net - PNOZ mc4p

Profibus-DP is used by Siemens, Rockwell and Omron use Device-net and Mitsubishi use CC-link for PLC's.

* Station addresses from 0 to 63
Non-safety related applications
Communication with Device-net

Note

You will require the PNOZ configurator and PNOZ m1p or PNOZ m0p

Approvals

UL,CCC
PNOZmulti Modular Safety System

This is a modular system comprising of a base unit and several expansion modules, the base unit provides several inputs and outputs and is fully functional even without an expansion module. Fieldbus modules for Profibus-DP, Device-net and CC-Link are also available.
The PNOZmulti configurator (see accessories) provides pre-licensed software valid for 30-days from installation date. Call Pilz within 30 days to register (which is used for technical queries and support from Pilz) and get the full licence at no additional cost. A configuration cable is also available (see accessories) should you require this for connection to PC (it is a standard null modem cable). The configurator is a graphic tool which is used to define the functions of the units. A simple circuit diagram shows how the inputs and outputs are connected and this is then downloaded to the base unit, which then recognises the functions is has to perform.
The PNOZmulti base units have an application range in accordance with EN954-1 up to Category 4: E-stop, two-hand, safety gate, light barrier, scanner, enabling switches and operating mode selector switch.
