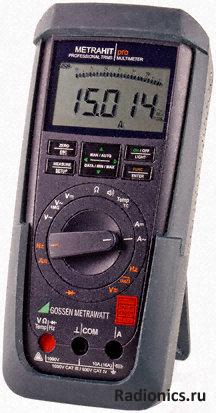

Мультиметр Gossen, M242E
Absolute Maximum AC Current Measurement 10A ac
Absolute Maximum AC Voltage Measurement 1000V ac
Absolute Maximum DC Current Measurement 10A dc
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 40MΩ
Absolute Maximum Temperature Measurement +1372°C
AC Current Measurement Resolution 100µA ac
AC Voltage Measurement Resolution 10µV ac
Application Electrical, Laboratory, Telecommunication
Battery Life 200 h
Battery Type AA
Best AC Current Accuracy ±0.9% + 10 Digits
Best AC Voltage Accuracy ±0.05% + 3 Digits
Best DC Current Accuracy ±0.9% + 10 Digits
Best DC Voltage Accuracy ±0.05% + 3 Digits
Best Resistance Measurement Accuracy ±2% + 10 Digits
Best Temperature Measurement Accuracy ±1% + 5 Digits
DC Current Measurement Resolution 100µA dc
DC Voltage Measurement Resolution 10µV dc
Dimensions 200 x 87 x 45mm
Display Type LCD
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, Temperature
Height 45mm
Length 200mm
Maximum Frequency 10kHz
Maximum Operating Temperature +40°C
Minimum Operating Temperature 0°C
Model Number p M242E
Multimeter Type Handheld
Resistance Measurement Resolution 10mΩ
Safety Category CAT III 1000 V, CAT IV 600 V
Safety Category Level CAT III, CAT IV
Safety Category Voltage 1000 V, 600 V
Temperature Measurement Resolution 0.1°C
True RMS Yes
Weight 0.35kg
Width 87mm |
