Контроллер EUROTHERM 4103M-6-N-1-Z-0-50-0-0-0-0-A-0

Контроллер EUROTHERM 4103M-6-N-1-Z-0-50-0-0-0-0-A-0

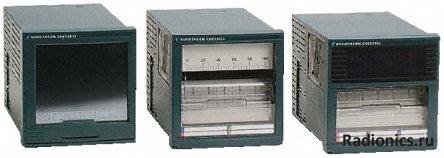

Paper/Paperless Chart Recorders
User configurable via built in key pad
Indication of most standard process signals including temperature, humidity, pressure and flow
Inputs: Vdc, mV(dc), mA(dc) (4102C, 4103M, 4100G with shunt), Thermocouples: B,C,D,E,G2,J,K,L,N,R,S,T,U,Ni/NiMo, Platinel
Digital indication
Supply voltage: 85-264Vac
Operating temperature limits: 0-50°C
Chart type: 16m “Z” fold
DIN standard cut out 138mm x 138mm
Depth behind panel, 236mm
Model 4102C
Single channel continuous pen 100mm chart recorder
Configurable for chart speeds between 5mm/hour and 300mm/hour and between 600mm and 36000mm/hour (ANNOTATION INHIBITED)
Model 4102M
6 channel multipoint 100mm recorder
Time, date , chart speed and scales printed on chart
Configurable for chart speeds between 5mm/hour and 120mm/hour
Model 4103 Advanced
6 input channels
Advanced features include basic maths calculations, timed logs, channel descriptors, message printing, bar graph display and alphanumeric display
Configurable for chart speeds between 0mm/hour to 1200mm/hour

Информация

Код товара SKU_18424

Производитель EUROTHERM

Артикул производителя 4103M-6-N-1-Z-0-50-0-0-0-0-A-0

Условия поставки Под заказ

Цена : Цену уточняйте: radioniсs@mail.ru
