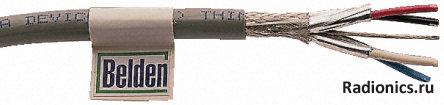

Кабель BELDEN, 3082A
American Wire Gauge 15, 18
Cable Shape Multicore
Conductor Material Tinned Copper
Conductor Resistance 11.811024 Ω/km, 22.637796 Ω/km
Core Strands 19/28, 19/30
Cross Sectional Area 0.97 mm, 1.54 mm
Current Rating 5 A, 8 A
Drain Wire Yes
Insulation Material Foam PE, PVC
Maximum Operating Temperature +75°C
Minimum Bend Radius 116.84 mm
Minimum Operating Temperature -20°C
Number of Cores 4
Number of Strands 19
Outer Diameter 12.192mm
Screen Type Aluminium/PET Foil
Screened/Unscreened Screened
Sheath Colour Grey
Sheath Material PVC
Size of Strands 28 AWG, 30 AWG
Voltage Rating 300 V |
